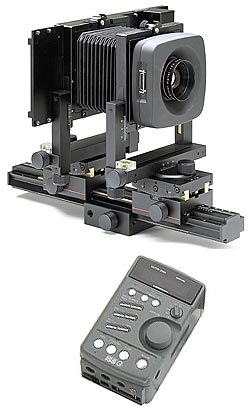

XAct-D camera kit
(21991)
* Lens shown is not included
* Power adapter & shutter/controller cable is not shown
Kit contains Horseman XAct-D camera, ISS-G2 shutter controller, IS-0 shutter mounted on a lens panel, power supply for the controller, connecting cable between shutter & controller.
XAct-D is a high precision technical view camera specially designed for use with High End digital capture backs. The optional Wide-Angle Adapter also allows the following lenses to be used with this view camera system:- Rodenstock Apo-Sironar-Digital 45mm F4.5
- Schneider Super Angulon XL 38mm F5.6
- Schneider Digital 28mmWA F2.8
XAct-D accepts virtually any digital back fitted with a Hasselblad mount. It also accepts Hasselblad mount viewers and film backs. A built-in CPU allows control between the ISS-G2 shutter system and the attached digital camera back.
XAct-D works with any of the following digital backs:- Eyelike MF
- Eyelike Precision M6/M11/M16
- Heidelberg ColorCam
- Imacon FlexFrame 3020/4040
- Imacon Ixpress
- Jobo ProFile 6000
- Kodak DCS Pro Back
- Leaf CMOST
- Leaf Valeo 11/6
- Leaf Volare/Cantare XY*
- Luma
- Megavision S3/S3Pro/S4/S427
- Phase One LightPhase/H5/H10/H20/H25
- Sinar Back 22/23/23HR/43/44/54
- *(Volare and Cantare are usable through live video mode.)
ISS-G2 electronic shutter controller features:- Shutter speed ranges 1/125 sec. - 32 sec. (in 1/3 f-stop steps) or 1 sec. - 99 min. 59 sec. (in 1 sec. steps)
- F-stop display range of F2 - F180 9/10
- Aperture control in steps of 1 fstop, 1/2 fstop, 1/3 fstop, 1/4 fstop, 1/6 fstop or 1/10 fstop
- Memory capacity for two settings
- Lens data memory capacity 254 settings for #0/#1 shutter size and 254 settings for #3 shutter size
- Memory EEPROM
- Backlit dot matrix LCD display with two lines of 16 characters each
- LED indicators FUNCTION (yellow), MEMORY (green), FULL OPEN (red), STOP DOWN (orange), CLOSE (green), RELEASE (red/yellow)
- Power supply DC 12V
- Dimensions 100 x 166 x 71mm
- Weight 850g
IS-0 electronic shutter is powered by the ISS-G2 shutter controller and offers ten times greater accuracy than its mechanical ancestors.
Features include:
- Max. shutter speed 1/125th sec.
- Aperture control in 1/10th f-stop steps
- Screw diameter of lens same as Copal#0 shutter
- Lens board mount aperture 65mm (same as Copal#3 shutter)
- Exterior dimensions 114x111x37mm
- Weight 400g
NOTE
The IS-0 shutter can be replaced by the IS-1 shutter at no extra cost
See the X-ActD information page for full details.
Miscellaneous :
Email a Friend
Product Inquiry
|
|
Our Price: €7,716.50
Usually ships in 10 - 14 days
Shipping Cost? - Click Add below
|
